AU HD 1080P 2MP IP Camera 20X Optical Zoom Sony CMOS CCTV PTZ Outdoor Pan Tilt

1 post in this topic

This is SONY CMOS 20X ZOOM , High Speed Dome Pan Tilt Zoom, HD 1080P 2.0MP Outdoor with 150M IR Night Vision. Come with 32G TF Card and Audio Pickup.

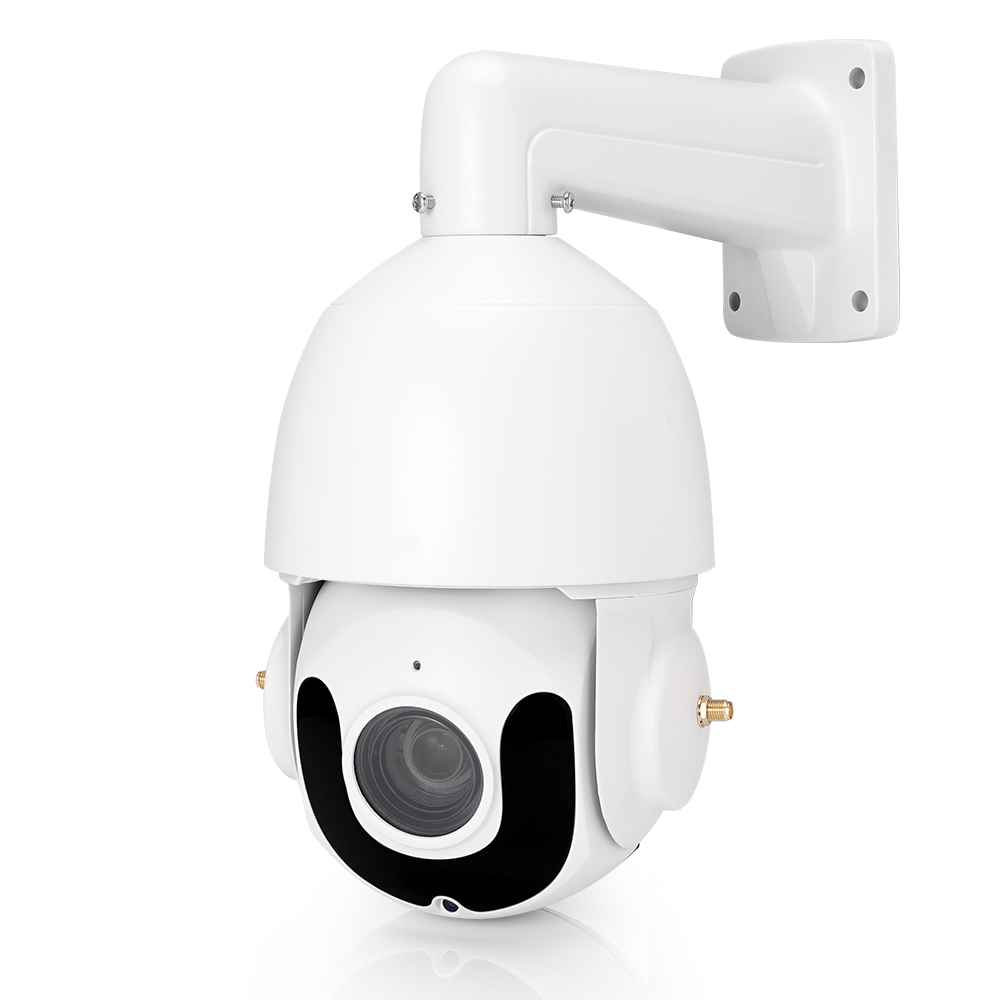

SONY CMOS 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 80M IR Audio

SONY CMOS 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 80M IR Audio

Model: JK-P01X2L4       #ID: 1002567

  • Support automatic calibration function
  • 1080P HD Resolution 30FPS
  • SuperArray IR LED up to 150M ( Great night vision)
  • Support most Onvif Recorder /or can use PC to record
  • Remote view support Android & IOS & Computer
  • Simple remote access no more difficult DDNS/Portfoward
  • Weather Proof for outdoor/indoor
  • Come with 32g TF card(up to 64g TF card) and audio pickup

Features


1. 4.5 inch metal structures, all-weather environmental design, IP66 waterproof
2. The third generation light components, low energy, infrared distance greater than 80 meters
3. Original infrared light PWM control technology. No "flashlight" phenomenon
4. Built-in surge and lightning protection device, effectively prevent 4000V transient current
5. Support 3D functions and given them intelligence rocker function, precise positioning can effectively track a moving target

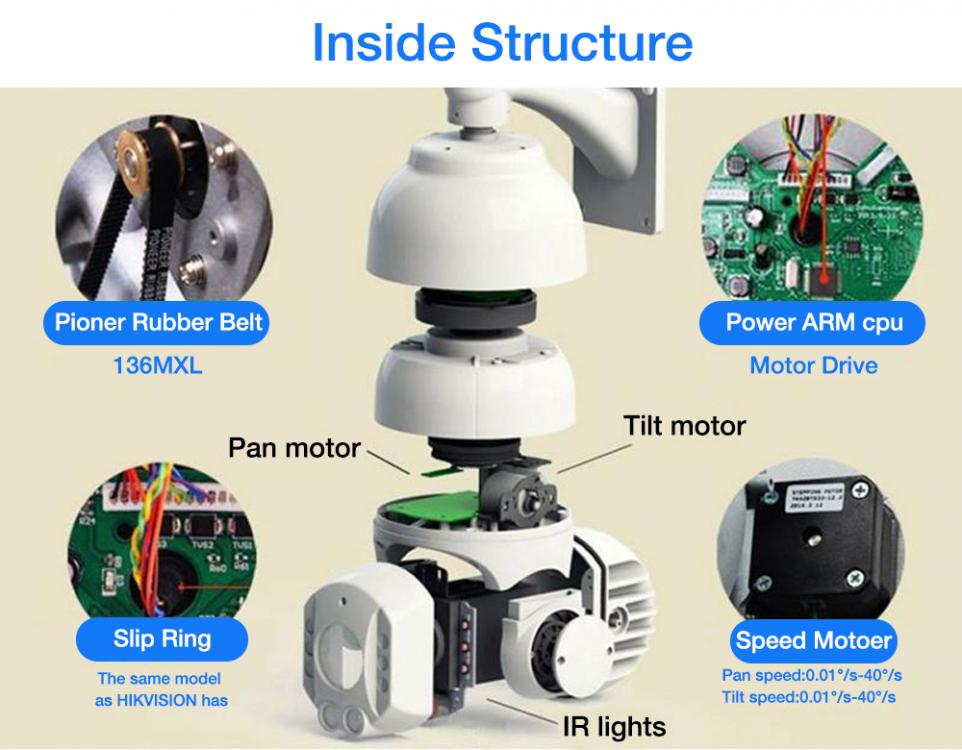

6. High-precision 0.9 degree stepper motor, responsive, smooth operation, preset position accuracy of less than 1.0 degree difference cumulative series
7. Support automatic calibration function
8. Progressive scan CMOS, high speed capture moving images without jagged
9 support phone monitoring, P2P remote network penetration, easy access step
10. The use of ultra-low-light CMOS image sensor, low-light 0.01lux
11. H.264 video compression algorithm for compression, support dual stream, high compression ratio, high-definition
12. The low power consumption, heat a small stable and reliable







Parameters


Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: 0 lux with IR
White Balance: Auto/manual/ATW/Indoor/outdoor/daylight lamp/sodium lamp
AGC: Auto/manual
BLC: ON/OFF
HLC: Support
WDR: Digital WDR
Day& Night: ICR
Digital Zoom: 20X
Privacy Masking: 4 privacy masks programmable
Auto Focus: Auto / semi-automatic/manual
Lens
Focal Length: 4.7-94mm, 20x
oom Speed: Approx.3s(optical wide-tele)
Minimum Working Distance: 10-1000mm(wide-tele)
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan manual speed: 0.1°-160°/s,
Pan preset speed: 240°/s"
Tilt Range: -15°-90° (auto flip )
Tilt Speed: Tilt manual speed: 0.1°-120°/s,
Tilt Preset Speed: 200°/s"
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preet: 256
Patrol: 8 patrols, up to 32 presets per patrol
Power Loss Recovery: Support
PTZ Position Display: ON/OFF
Freeze Frame: Support
Park Action: Preset/patrol/pattern/pan scan/tilt scan/random scan/frame scan/panorama scan
Infrared
IR Irradiation Distance: 80m
IR Irradiation Angle: Adjustable by zoom
Input & Output
Audio Input: 1 mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%"
Network
Ethernet: 10Base -T/100Base-TX, RJ45 connector
Max.Image Resolution: 1280×720
Frame Rate: 50Hz: 25 fps (1920×1080), 25 fps (1280×960), 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×960), 30 fps (1280×720)
Image Compression: H.264 / MJPEG
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QOS, FTP, SMTP, UPNP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPOE
No. of Simultaneous Users: up to 5 users
Dual Stream: Support
Mini SD Card: built-in 32G TF Card .Support up to 64GB TF card
User/Host Level: Up to 20 users,3 levels: administrator, operator and user
General
Power Supply: DC12V 2A
Working Temperature/Humidity: -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less
Protection Level: IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional

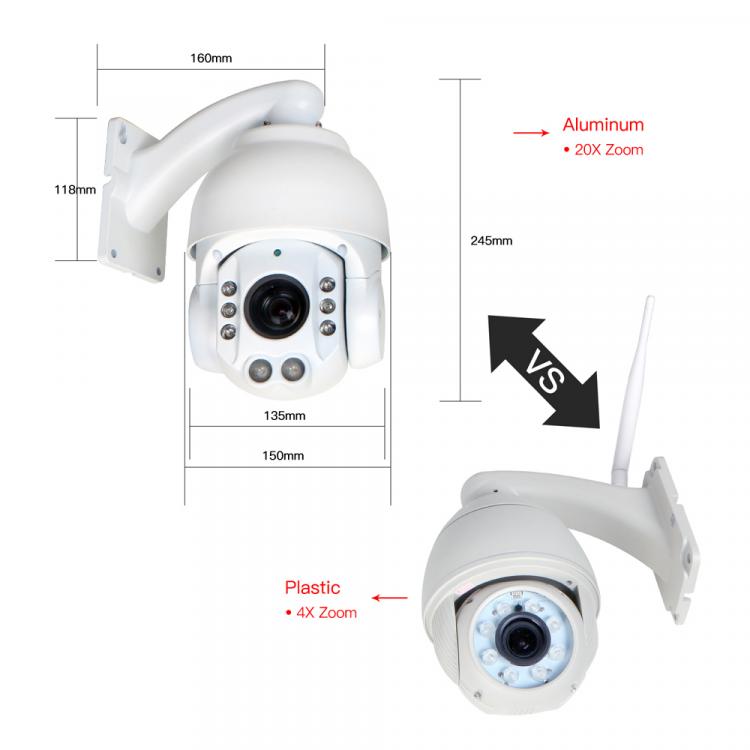

Dimensions: Φ150×245mm
Weight (approx.): 3kg(9.92Ibs)

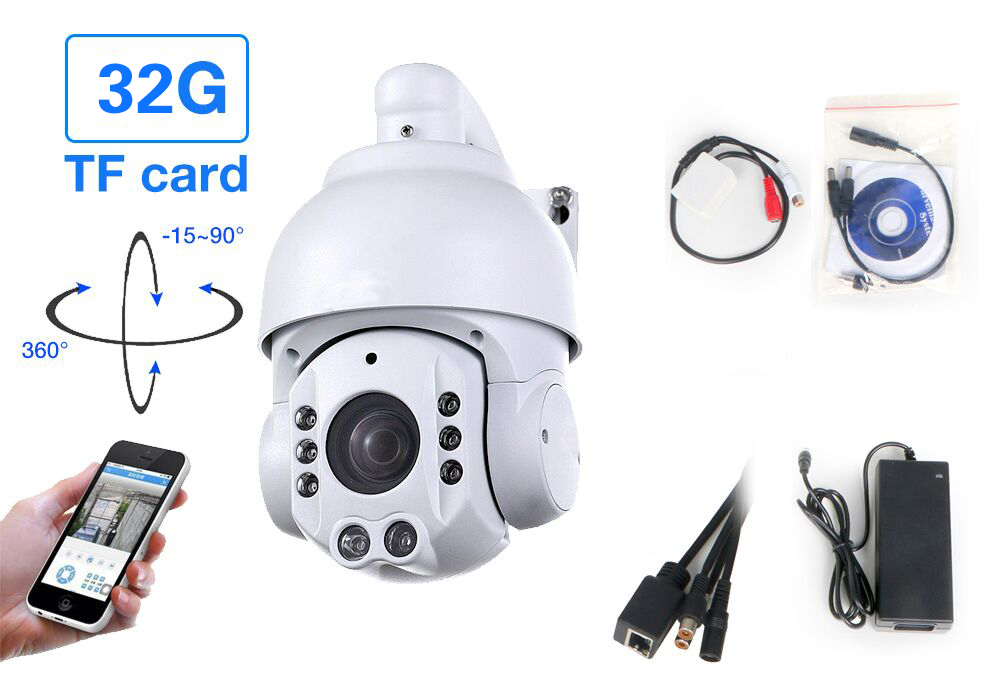

Package


1 x PTZ Camera
1 x CD ROM
1 x Sound Pick-up Wire
1 x Sound Pick-up
